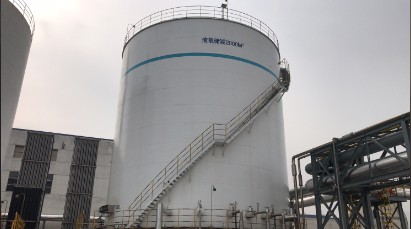

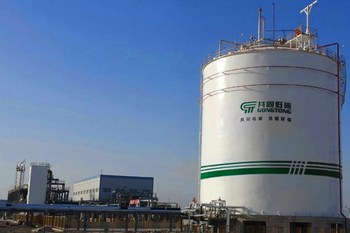

The large-scale atmospheric pressure storage tank of LNG cryogenic liquid adopts double-walled inner and outer cylinders, vertical cylindrical structure, adopts pearlescent sand powder accumulation and adiabatic, atmospheric pressure storage, adopts in-plant prefabrication, on-site assembly and installation mode.
Technical Introduction:
The large-scale atmospheric pressure storage tank of LNG cryogenic liquid adopts double-walled inner and outer cylinders, vertical cylindrical structure, adopts pearlescent sand powder accumulation and adiabatic, atmospheric pressure storage, adopts in-plant prefabrication, on-site assembly and installation mode.
Technical Features:
1. Working pressure: 0.02-0.05MPa
2. Effective volume: 1000m3~16000m3
Technical Parameters:
Model | Volume | Storage medium | Work pressurek pa | Size | Equipment empty weightkg |
1000 | 1000 | LNG | 15 | ф13400×14500 | 192000 |
2000 | 2000 | LNG | 15 | ф16900×16500 | 315700 |
2500 | 2500 | LNG | 15 | ф18100×20221 | 360000 |
3000 | 3000 | LNG | 15 | ф18400×19800 | 419300 |
5000 | 5000 | LNG | 15 | ф21000×24800 | 578000 |
