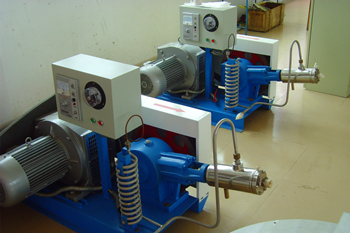

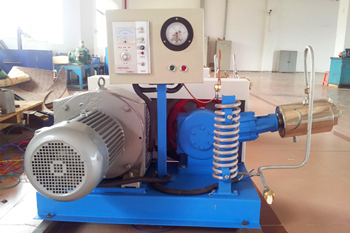

Cryogenic liquid plunger pump is mainly used for liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide and other cryogenic liquid pressure and transportation.
Technical Introduction:
Cryogenic liquid plunger pump is mainly used for liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide and other cryogenic liquid pressure and transportation.
Technical Features:
1. This series of pumps can be combined with the carburetor produced by our company to form a gas filling system;
2. Vacuum insulation at the cold end of the pump head reduces the loss of liquid;
3. It has the characteristics of compact structure, low energy consumption, low noise and easy operation.
Technical Parameters:
Model | Medium | flow LPH | Inlet pressure（MPa) | Outlet pressure（MPa) | Power（Kw） |
BP-70～150/165 | LO2.LN2.LAr | 70～150 | 0.055 | 16.5 | 3 |
BP-100～250/165 | LO2.LN2.LAr | 100～250 | 0.055 | 16.5 | 4 |
BP-100～450/165 | LO2.LN2.LAr | 100～450 | 0.055 | 16.5 | 5.5 |
BP-100～650/165 | LO2.LN2.LAr | 100～650 | 0.055 | 16.5 | 7.5 |
P-900/100 | LCO2 | 900 | 1.7～2.2 | ≤10 | 5.5 |
P-1200/100 | LCO2 | 1200 | 1.7～2.2 | ≤10 | 5.5 |
P-200～600/100 | LCO2 | 200～600 | 1.7～2.2 | ≤10 | 7.5 |
P-600～1200/100 | LCO2 | 600～1200 | 1.7～2.2 | ≤10 | 7.5 |
