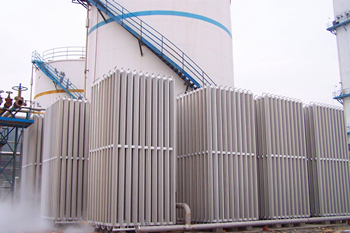

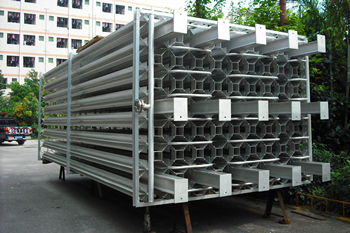

The air-temperature vaporizer is made of alloy aluminum profile and is used to vaporize various cryogenic liquids such as liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, and liquefied natural gas.
Technical Introduction:
The air-temperature vaporizer is made of alloy aluminum profile and is used to vaporize various cryogenic liquids such as liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, and liquefied natural gas.
Technical Features:
1. Energy saving and environmental protection, using the heat of the air, no need to consume other energy;
2. Easy to operate, the inlet and outlet pipes are detachable connections;
3. Uniform heat exchange, fin tube carefully calculated, reasonable design, sufficient heat exchange area, no bias flow phenomenon.
Technical Parameters:
Model | Vaporization Nm3/h | Work pressure MPa | Dimensions mm | Weight kg |
QQ-100/25 | 100 | 3.0 | 1154×764×2464 | 170 |
QQ-300/25 | 300 | 3.0 | 1732×1610×2464 | 580 |
QQ-500/25 | 500 | 3.0 | 2860×1610×2464 | 820 |
QQ-600/25 | 600 | 3.0 | 2578×2174×2464 | 970 |
QQ-1500/25 | 1500 | 3.0 | 5116×2738×2464 | 2360 |
QQ-3000/25 | 3000 | 3.0 | 3512×3318×6314 | 4600 |
QQ-100/165 | 100 | 16.5 | 1154×764×2464 | 260 |
QQ-300/165 | 300 | 16.5 | 1732×1610×2464 | 660 |
QQ-500/165 | 500 | 16.5 | 2860×1610×2464 | 1060 |
QQ-600/165 | 600 | 16.5 | 2578×2174×2464 | 1259 |
