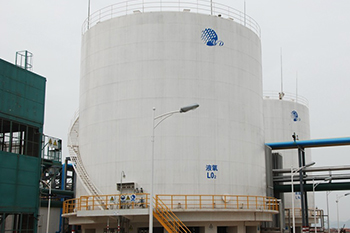

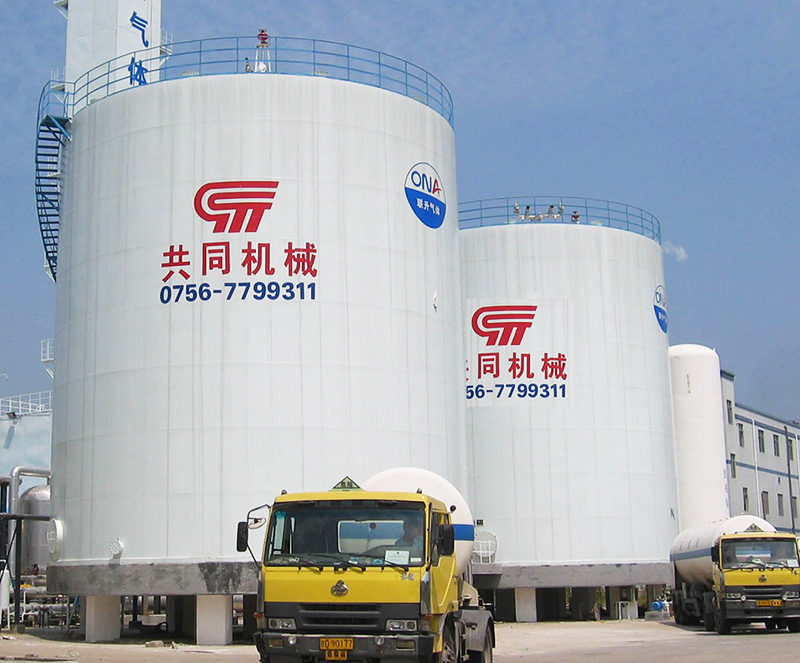

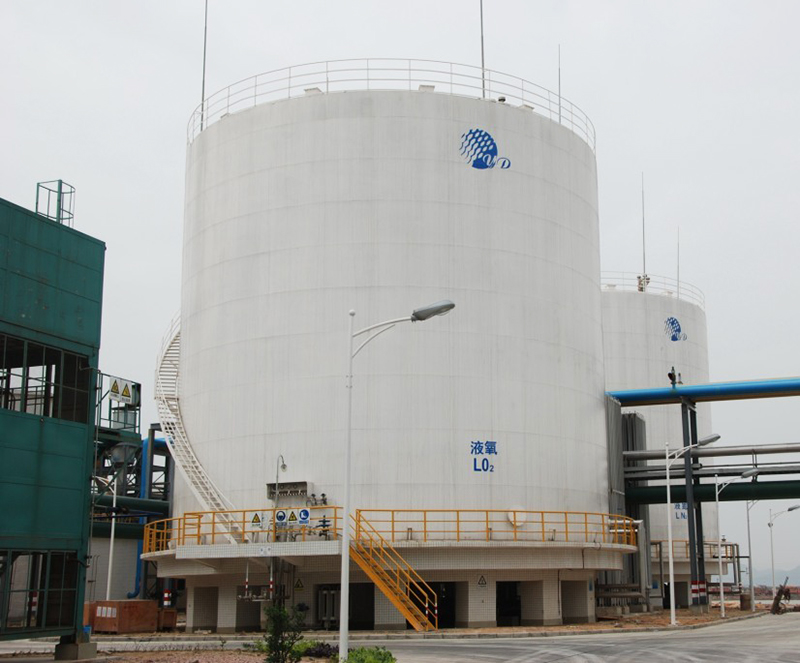

The large-scale atmospheric pressure storage tank of cryogenic liquid adopts double-walled inner and outer cylinders, vertical cylindrical structure, adopts pearlescent sand powder accumulation and insulation, atmospheric pressure storage, adopts factory prefabrication, on-site assembly and installation mode. It is used to store liquid oxygen, liquid nitrogen, liquid argon, LNG and other cryogenic liquids.
Technical Introduction:
The large-scale atmospheric pressure storage tank of cryogenic liquid adopts double-walled inner and outer cylinders, vertical cylindrical structure, adopts pearlescent sand powder accumulation and insulation, atmospheric pressure storage, adopts factory prefabrication, on-site assembly and installation mode. It is used to store liquid oxygen, liquid nitrogen, liquid argon, LNG and other cryogenic liquids.
Technical Features:
1. Working pressure: 0.02-0.05MPa
2. Effective volume: 1000m3-16000m3
Technical Parameters:
Model | Volume(m2) | Storage medium | Work pressure(Mpa) | Size | Equipment empty weight(kg) |
CF-1000 | 1000 | LOX/LNX/LAr/LNG | 0.02-0.05 | ф13400×14500 | 192000 |
CF-2000 | 2000 | LOX/LNX/LAr/LNG | 0.02-0.05 | ф16900×16500 | 315700 |
CF-2500 | 2500 | LOX/LNX/LAr/LNG | 0.02-0.05 | ф18100×20221 | 360000 |
CF-3000 | 3000 | LOX/LNX/LAr/LNG | 0.02-0.05 | ф18400×19800 | 419300 |
CF-5000 | 5000 | LOX/LNX/LAr/LNG | 0.02-0.05 | ф21000×24800 | 578000 |
